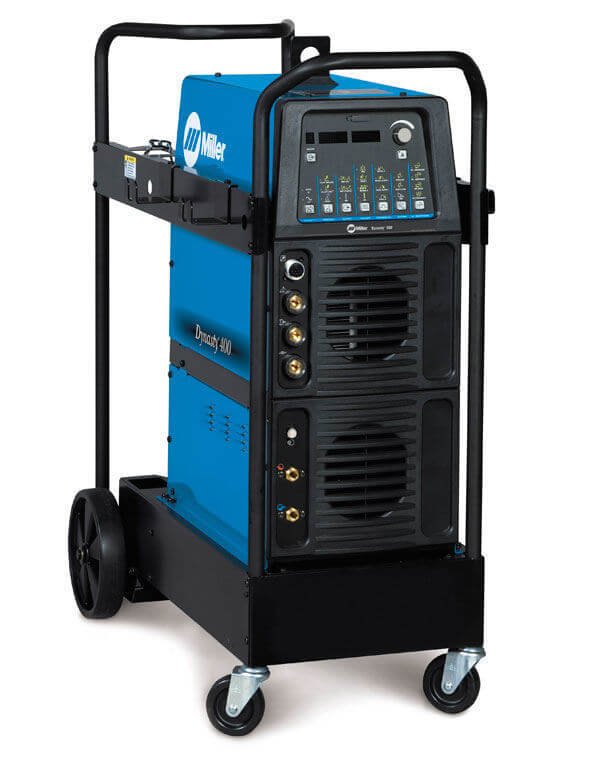

Miller Dynasty 400 TIG Runner #907717001

Miller Dynasty 400 TIG Runner #907717001 Specifications:

Input Voltage Options 208 V
220/230/240 V
380/400 V
460/480 V
575 V Input Phase 1- and 3-Phase Input Hz 50 / 60 Hz Current Type AC/DC Max Open Circuit Voltage 75 VDC Weld Output CC Processes TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
Air carbon arc (CAC-A) 1/4 in. maximum Industrial Applications Precision fabrication
Heavy fabrication
Pipe and tube fabrication
Aerospace
Aluminum ship repair
Anodized aluminum fabrication Weldable Metals Aluminum
Specialty Metals
Steel
Stainless Steel Net Width 23 1/8″ Net Height 43 1/8″ Net Length 43 3/4″ Net Weight 134 lb. (61 kg) Performance Specifications   3-Phase 1-Phase Rated Output 250 A at 30 V,100% duty cycle
300 A at 32 V, 60% duty cycle 200 A at 27.2 V, 100% duty cycle
250 A at 29 V, 60% duty cycle TIG Duty Cycle 400 A, 20%
300 A, 60%
250 A, 100% 300 A, 60%
250 A, 100%
300 A, 20% Stick Duty Cycle 400 A, 20%
300 A, 60%
250 A, 100% 300 A, 60%
250 A, 100%
300 A, 20% AC TIG Material Thickness Range .015–5/8 in.
(0.38–15.9 mm) .015–5/8 in.
(0.38–15.9 mm) DC TIG Material Thickness Range .012–5/8 in.
(0.3–15.9 mm) .012–5/8 in.
(0.3–15.9 mm) Stick Electrode Maximum Diameter 6010: 1/4 in. (6.4 mm)
7018: 1/4 in. (6.4 mm)
7024: 1/4 in. (6.4 mm) 6010: 1/4 in. (6.4 mm)
7018: 1/4 in. (6.4 mm)
7024: 1/4 in. (6.4 mm) Carbon Arc Grouping (CAC-A) Maximum 1/4 in. (6.4 mm) 1/4 in. (6.4 mm) Generator Requirement 20kW 20kW Ancilliaries Warranty Miller’s True Blue Warranty Portability Lift Eye (Standard)
Running Gear / Car (Standard)
